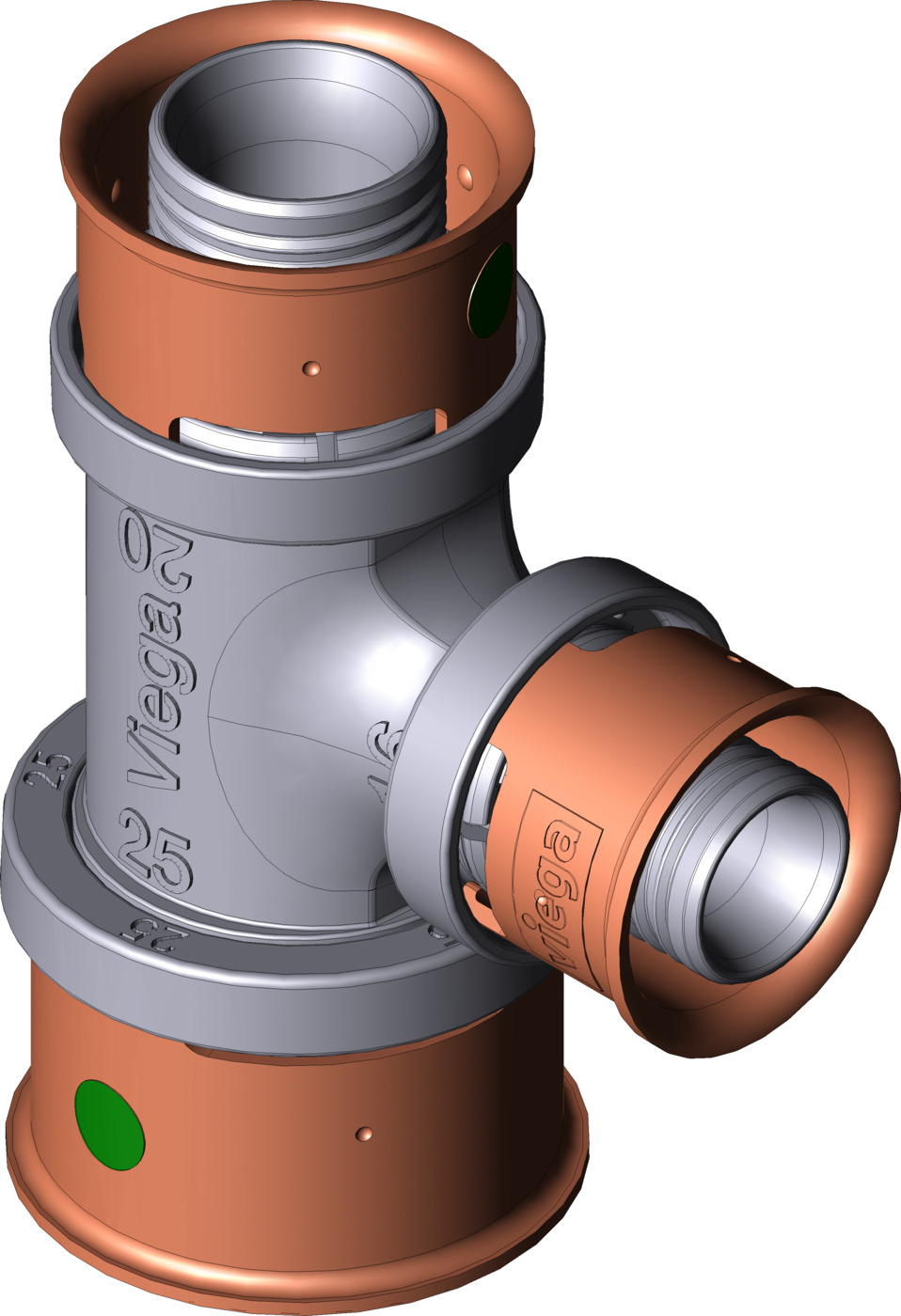

Viega Speedpress T-piece

Viega Speedpress T-piece

with SC‑Contur
  • PPSU
  • press connections

Model K5818

Articles table

d1 d2 d3 PU Article amount
16 16 16 10 783 433
20 16 16 10 783 457
20 16 20 10 783 464
20 20 16 10 783 471
20 20 20 10 783 440
25 16 20 5 783 495
25 16 25 5 783 501
25 20 20 5 783 518
25 20 25 5 783 525
25 25 16 5 783 532
25 25 20 5 783 549
25 25 25 5 783 488

Warehouse labels - labels and cardboard

d1 d2 d3 warehouse labels (box) warehouse labels (adhesive label) Article
16 16 16 783 433
20 16 16 783 457
20 16 20 783 464
20 20 16 783 471
20 20 20 783 440
25 16 20 783 495
25 16 25 783 501
25 20 20 783 518
25 20 25 783 525
25 25 16 783 532
25 25 20 783 549
25 25 25 783 488

CAD files

  • Left mouse to rotate
  • Right mouse to move
  • Mouse wheel to zoom
  • One finger touch to rotate
  • Two finger touch to move
  • Pinch to zoom

(Please select)

d1 d2 d3 file size Article
16 16 16 289 KB 783 433
20 16 16 302 KB 783 457
20 16 20 309 KB 783 464
20 20 16 301 KB 783 471
20 20 20 293 KB 783 440
25 16 20 310 KB 783 495
25 16 25 307 KB 783 501
25 20 20 311 KB 783 518
25 25 16 302 KB 783 532
25 25 20 305 KB 783 549
25 25 25 304 KB 783 488

Z dimensions

d1 d2 d3 Z1 [mm] Z2 [mm] Z3 [mm] L1 [mm] L2 [mm] L3 [mm] Article
16 16 16 16 16 16 29 29 29 783 433
20 16 16 16 17 16 29 31 29 783 457
20 16 20 16 17 16 29 31 29 783 464
20 20 16 18 18 18 32 32 32 783 471
20 20 20 18 18 18 31 31 31 783 440
25 16 20 17 21 17 30 34 34 783 495
25 16 25 17 21 17 34 34 34 783 501
25 20 20 18 21 18 32 34 36 783 518
25 20 25 18 21 18 36 34 36 783 525
25 25 16 21 21 21 34 38 34 783 532
25 25 20 21 21 21 34 38 34 783 549
25 25 25 21 21 21 38 38 38 783 488

Downloads

Instructions for use

Instructions for use

instructions for use Viega Speedpress

Download

instructions for use Viega Speedpress

file size: 5 MB file type: PDF
